Plastic PE HDPE PP PVC Double Layer Corrugated Pipe Extrusion Machine Line with CE

FOB Reference Price:Get Latest Price
$80,000.00 - $150,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SGB500
Output (kg/h):
300-500
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Screw diameter (mm):
90 mm
Screw L/D Ratio:
33:1
Output (kg/h):
300 - 400
Condition:
New
Application:
Pipe
Plastic Processed:
PE PP PVC
Screw Design:
Single-screw
Place of Origin:
Jiangsu, China
Brand Name:
LIANSHUN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
20mx2.5mx2.2m
Weight:
8-20T
Certification:
ISO CE SGS UL
Power (kW):
250
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty:
1 Year
Key Selling Points:
Competitive Price
Name:
double wall corrugated pipe production line
Raw material:
PP PE Granules
Motor brand:
Siemens product
Inverter brand:
ABB product
Temperature controller:
RKC Japan
Pipe diameter range:
200-500mm
Experience:
14years for manufacturing corrugated pipe production line
Material:
Stainless Steel 304
Color:
Customised
Automatic Grade:
Fully Automatic
Supply Ability
Supply Ability:
12 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed by plastic film and wooden pallets, key parts put into wooden case.
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 60 To be negotiated
Video Description
Product Description

Plastic PE HDPE PP PVC Double Layer Corrugated Pipe Extrusion Machine Line with CE

Description of double wall corrugated pipe production line:

It is fully computer controlled,automatic production line (Ø200-Ø500). It has features of high and stable output capacity as well as highly automatic operation. According to the material situation, for HDPE, you can choose high efficient single screw extruder.For PVC, you can choose conical twin screw extruder. The forming system of this line consists of mould and corrugator. The mould blocks can be easily changed and they are equipped with air or water cooling system. The production line can also be equipment with siemens company SIEMENS control system.

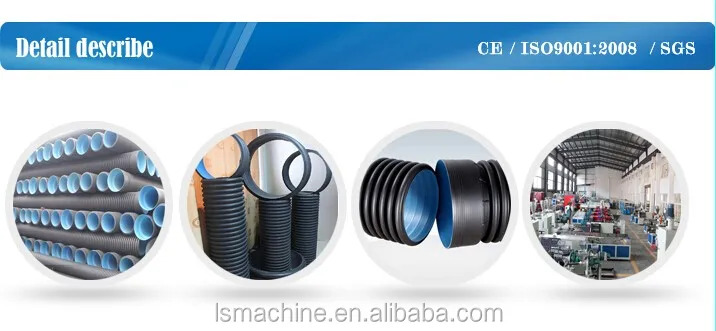

The use of final product---plastic double wall corrugated pipe:
Storm water and sewerage, drainage pipes for fields, streets, roads, squares and buildings,conveyor pipes, protection pipes for TV, glassfiber, telephone, electricity, IT and computer;protection pipes for cables, district heating systems, domestic connection lines ,structural and civil engineering.

Main technical parameters---double wall corrugated pipe production line:

Model
SGB800
SGB600
SGB500
SGB250
Structure Form
Vertical
Vertical
Horizontal
Horizontal
Materials
Partical / Powder
Partical / Powder
Partical / Powder
Partical / Powder
Application Raw Material
HDPE /FRPP/PVC
HDPE/ FRPP/PVC
HDPE/ FRPP/PVC
HDPE/ FRPP/PVC
Pipe Diamter
225-800
250-600
200-500
75-250
Max. Extrusion Output
850kg/h
700kg/h
600kg/h
350kg
Expansion Mode
Belling0-on-line, double-wall socket joint
Belling0-on-line, double-wall socket joint
Belling0-on-line, double-wall socket joint
Belling0-on-line, double-wall socket joint
Forming Speed
0.23-3m/min
0.25-4m/min
0.25-4m/min
0.6-6m/min
Center Height
1600mm
1600mm
1600mm
1150
Number of Mold Blocks (pairs)
32
32
40
48

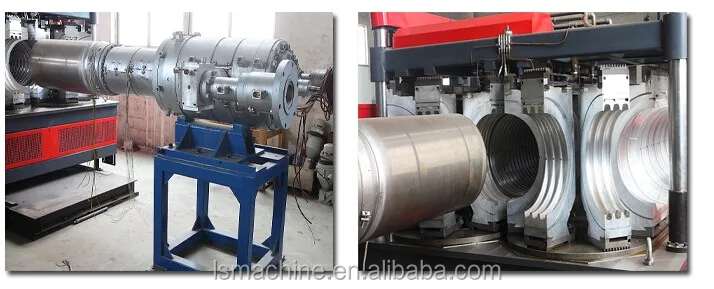

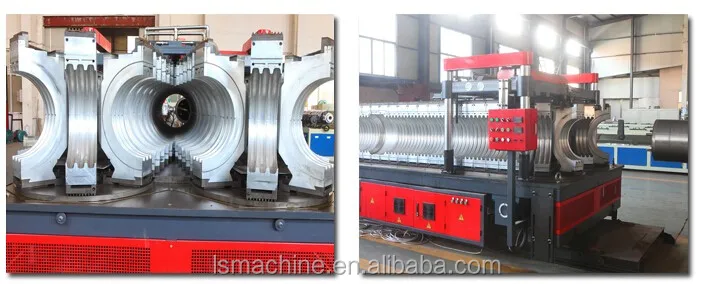

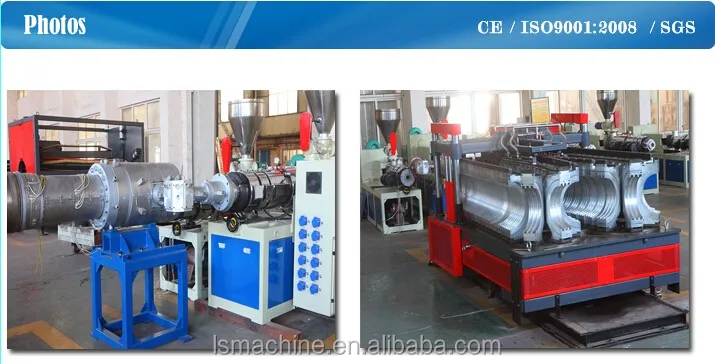

Detailed Images

Plastic PE HDPE PP PVC Double Wall Corrugated Pipe Extrusion Machine Line

Certifications
Packing & Delivery
Our Service

1. Turn key project
2. Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
3.Arrangement for inspection, installation and testing work
We will inspect and test the machine in our factory first before shipping the machine. Customers are welcome to come and check the working machine, until the machine produces the exact products as customers requirements, and learn operation in our factory.
After the machine is delivered to customer's factory, we will send one or two technicians to customer's factory for on-site installation and commissioning of the whole machine line. Meanwhile, technicians will give free training lessons to workers in customer's factory.
4.The guarantee period of the whole machine is 15 months.
5.Technical support from our factory is free of charge for all the life; quick response to any questions from customers.

FAQ

1.Q: Are you an industry manufacture factory or a foreign trade company?
A: We are an industrial manufacture factory of plastic extrusion machinery and auxiliary equipment, which locates in Zhangjiagang city, China.
2.Q: Payment term:
A: Loading Port: Shanghai by sea or by train.
T/T, L/C, West Union, or Cash, etc.

3.Q: Do you have any other services for your products?
A: We have rich experience in manufacturing plastic machinery, so we can manufacture various machines according to customers' requirement.
4. Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.

Our Company

Jiangsu Lianshun Machinery CO.,Ltd. is located in Zhangjiagang city, Jiangsu province, China. It's a professional manufacturer specializing in research&development and producing plastic extrusion machinery. The main products include: plastic pipe extrusion lines, plastic profile production lines, plastic sheet extrusion lines, WPC board and profile extrusion line, PET bottle flakes washing recycling lines, PP/PE film washing recycling lines, PVC/PP/ PE pelletizing lines and auxiliary machinery (mixer unit, crusher and shredder, belling machine, etc.)

We have enjoyed great prestige from our customers both at home and abroad with good products quality and considerate service.We exported our products to many countries and regions all over the world, such as the Mid-East, Africa, Southeast Asia, South America, Europe,etc.

We sincerely hope to cooperate with customers from all over the world.

If you are interested in plastic PE HDPE PP PVC double wall corrugated pipe production line, please contact us, thanks!
