Low energy consumption plastic machinery PPR Pipe production line with Fiberglass Reinforcement

FOB Reference Price:Get Latest Price
$23,000.00 - $48,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SJ-65
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Pipe
Plastic Processed:
PPR
Screw Design:
Single-screw
Place of Origin:
Jiangsu, China
Brand Name:
LIANSHUN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
20mx2.5mx2.2m
Weight:
8-20T
Certification:
ISO CE SGS UL
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty:
1 Year
Name:
PPR pipe production line with fiberglass reinforcement
Raw material:
PPR
Motor:
Germany SIEMENS Motor
Inverter:
ABB Frequency Controller
Temperature controller:
RKC Japan
Pipe diameter range:
16-160mm
Product usage:
cold and hot water supply pipe
Material:
Stainless Steel 304
Color:
Customised
Automatic Grade:
Fully Automatic
Power(W):
depend on model
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard seaworthy package.
Port
Shanghai port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Description

Low energy consumption plastic machinery PPR Pipe production line with Fiberglass Reinforcement

Description of PPR pipe production line:

PPR pipe machine/plastic pipe machine is used to produce PPR pipes for cold and hot water supply in house. It's consisted of vacuum feeding machine, hopper dryer, single screw extruder, mould, mark line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.

And for three layers PPR fiber reinforced pipe, there will be also another extruder for middle fiber layer.

PPR pipe can be single layer with mark line extruded by two extruders, or three layers with middle layer glass fiber reinforced extruded by three high effeciency extruders; or four layers ppr glass fiber reinforced pipe,etc.

Features of product of PPR pipe:
1. Linear expansion co-efficient is only about 20-30% compared to normal PPR products, completely solve the problem of plastic pipe stretching.

2. Rigidity of the pipe to prevent the pipe sagging, while also reducing the density and number of fixed support points, thereby reducing the overall cost of the project.


3. Higher pressure levels, longer life under normal design tremor force.

4. High temperature performance is better, save energy, FR / PP-R apply in hot water systems, the normal temperature up to 95-100 ℃, both to improve the use of the medium temperature, but also reduce the thickness of insulation material.Comprehensive cost is less.

5. Large water flow: at the same level of pressure conditions, thickness of the FR / PP-R pipe wall increases the inner diameter of the pipe thereby increasing the water flow rate (20%)

6. Solve the problem of the oxygen permeability of the pipeline, direct contact with the water table within the health is non-toxic, sealing, and will not form sphagnum moss.

Main Technical Parameters:

Model
Pipe diameter scope (mm)
Extruder model
Production capacity (kg/h)
Installed power (kw)
Line length (m)
PP-R-63
20-63
SJ65, SJ25
120
94
32
PP-R-110
20-110
SJ75, SJ25
160
175
38
PP-R-160
50-160
SJ90, SJ25
230
215
40
PE-RT-32
16-32
SJ65
100
75
28
Detailed Images

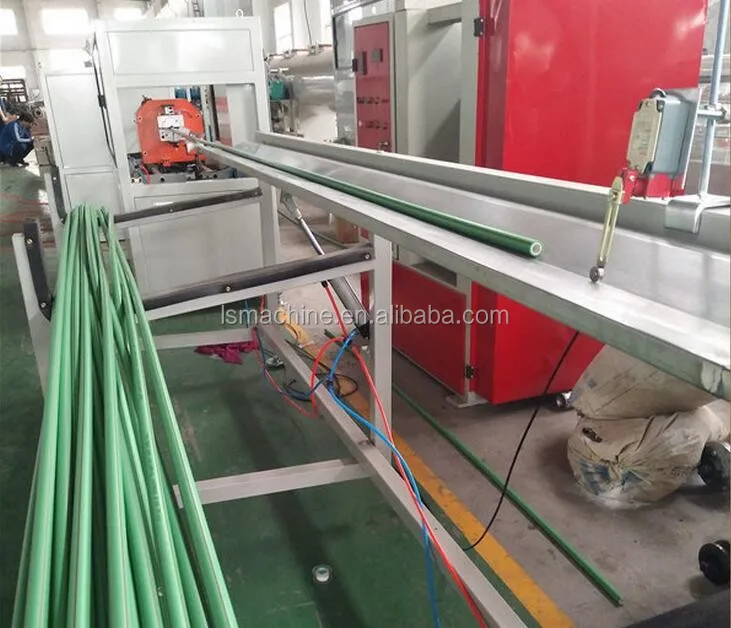

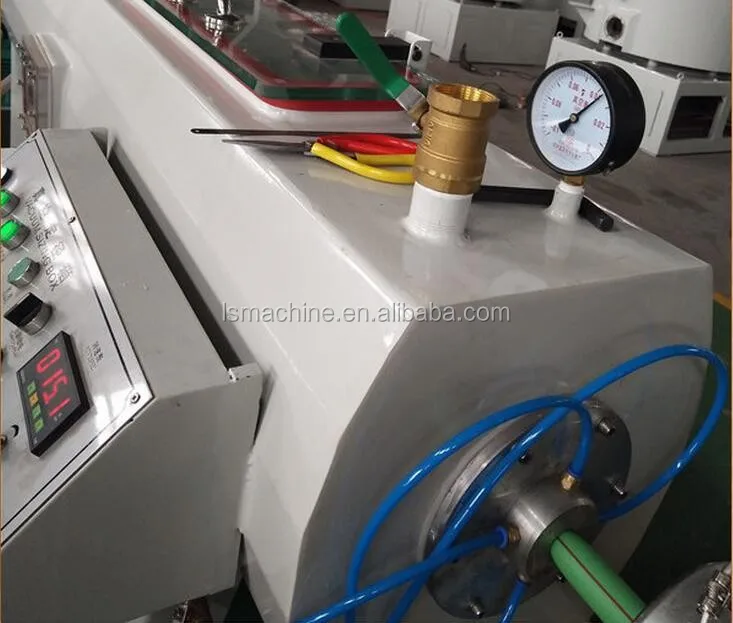

PPR Pipe Production Line with Fiberglass Reinforcement

Certifications
Packing & Delivery
Our Service

1. Turn key project
2. Technical documents

We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
3.Arrangement for inspection, installation and testing work
We will inspect and test the machine in our factory first before shipping the machine. Customers are welcome to come and check the working machine, until the machine produces the exact products as customers requirements, and learn operation in our factory.
After the machine is delivered to customer's factory, we will send one or two technicians to customer's factory for on-site installation and commissioning of the whole machine line. Meanwhile, technicians will give free training lessons to workers in customer's factory.
4.The guarantee period of the whole machine is 15 months.
5.Technical support from our factory is free of charge for all the life; quick response to any questions from customers.

FAQ

1.Q: Are you an industry manufacture factory or a foreign trade company?
A: We are an industrial manufacture factory of plastic extrusion machinery and auxiliary equipment, which locates in Zhangjiagang city, China.
2.Q: Payment term:
A: Loading Port: Shanghai by sea or by train.
T/T, L/C, West Union, or Cash, etc.

3.Q: Do you have any other services for your products?
A: We have rich experience in manufacturing plastic machinery, so we can manufacture various machines according to customers' requirement.
4. Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.

Our Company

Jiangsu Lianshun Machinery CO.,Ltd. is located in Zhangjiagang city, Jiangsu province, China. It's a professional

manufacturer specializing in research&development and producing plastic extrusion machinery. The main products include: plastic pipe extrusion lines, plastic profile production lines, plastic sheet extrusion lines, WPC board and profile extrusion line, PET bottle flakes washing recycling lines, PP/PE film washing recycling lines, PVC/PP/ PE pelletizing

 lines and auxiliary machinery (mixer unit, crusher and shredder, belling machine, etc.)

We have enjoyed great prestige from our customers both at home and abroad with good products quality and considerate service.We exported our products to many countries and regions all over the world, such as the Mid-East, Africa, Southeast Asia, South America, Europe,etc.

We sincerely hope to cooperate with customers from all over the world.

If you are interested in PPR pipe production line, please don't hesitate to contact us, thanks!

Welcome you to visit our factory and working machine can be showed anytime!
