160-450mm HDPE Pipe Making Machine Plastic PE Tube Extrusion Machine Line with Best Price

FOB Reference Price:Get Latest Price
$22,000.00 - $36,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SJ-90, SJ-120
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Screw diameter (mm):
90 mm
Output (kg/h):
300 - 550 kg/h
Condition:
New
Application:
Pipe
Plastic Processed:
PE
Screw Design:
Single-screw
Place of Origin:
Jiangsu, China
Brand Name:
LIANSHUN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
25M*2.5M*3.5M
Weight:
8-20T
Certification:
ISO CE SGS UL
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty:
2 Years, 15 Months
Key Selling Points:
Competitive Price
Name:
Plastic HDPE large diameter pipe making machine
Raw material:
HDPE Granules
Product:
HDPE Pipe
Motor:
Germany SIEMENS Motor
Frequency converter:
ABB Brand
Temperature controller:
Omron Brand
Pipe diameter scope:
20-1600mm
Material:
Stainless Steel 304
Automatic Grade:
Automatic
Power(W):
120KW
Supply Ability
Supply Ability:
12 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed with plastic film and wooden pallets, key parts put in wooden case.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 35 To be negotiated
Product Description

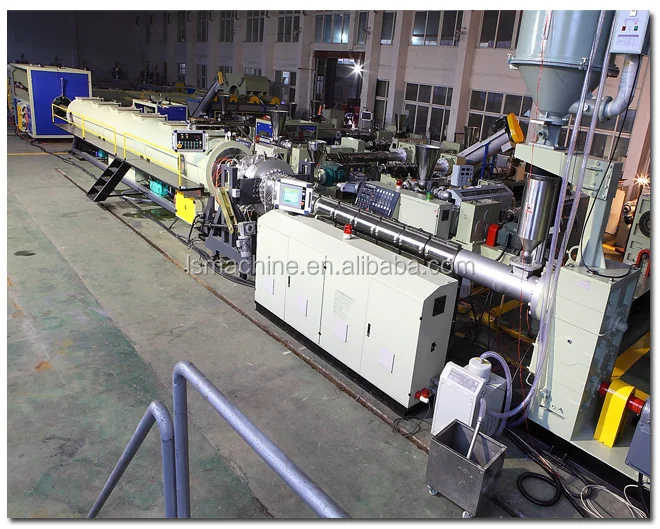

160-450mm HDPE Pipe Making Machine Plastic PE Tube Extrusion Line

Description of 160-450mm HDPE pipe making machine:

160-450mm HDPE pipe making machine is mainly used in the production of agricultural, construction and sewage drainage, etc.The unit consists of single screw extruder, vacuum calibration tank,hauling machine, cutting machine, stacker and other components.Single-screw extruder and hauling machine adopts imported AC frequency control devices, vacuum pump and traction motors are made of high-quality products.You can choose no dust cutting, saw cutting or planetary cutting machine reliable performance, high production efficiency.

Our company can according to users' requirements,equipped with special devices and produce inner wall spiral pipe, inner wall hollow pipe, and core layer foam pipe. This HDPE pipe extrusion line also can produce other pipe materials PP, PE, PPR, HDPE. Planetary cutting machine is fully automatic computer digital control, easy to operate, reliable performance, etc., reached the international advanced level.

We use low-temperature low-pressure extrusion system efficiency, improve products and plasticizing effect extrusion capacity, yield an increase of 10-15%.

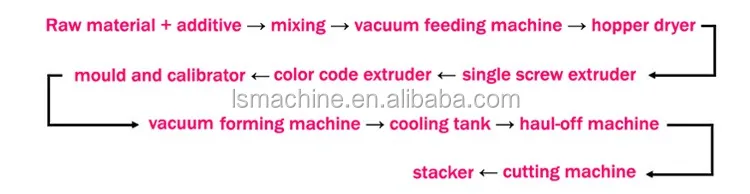

Process flow of 160-450mm HDPE pipe making machine:

 Main technical parameters:

Item
Pipe diameter (mm)
Extruder
Motor power (kw)
Capacity (kg/h)
L/D
PEG-63
20-63
SJ65
37
80-150
33:1
PEG-110
20-110
SJ65
55
100-200
33:1
PEG-160
50-160
SJ75
75
150-250
33:1
PEG-250
50-250
SJ75
110
400-500
33:1
PEG-315
110-315
SJ90
160
280-400
33:1
PEG-450
160-450
SJ90
160
600-800
38:1
PEG-630
315-630
SJ120
250
800-1000
38:1
PEG-800
450-800
SJ150
360
600-1300
33:1
PEG-1000
630-1000
SJ150
380
800-1500
33:1
PEG-1200
800-1200
SJ120 & SJ90
450
900-1800
33:1
PEG-1600
900-1600
SJ120 & SJ90
510
1200-2100
38:1

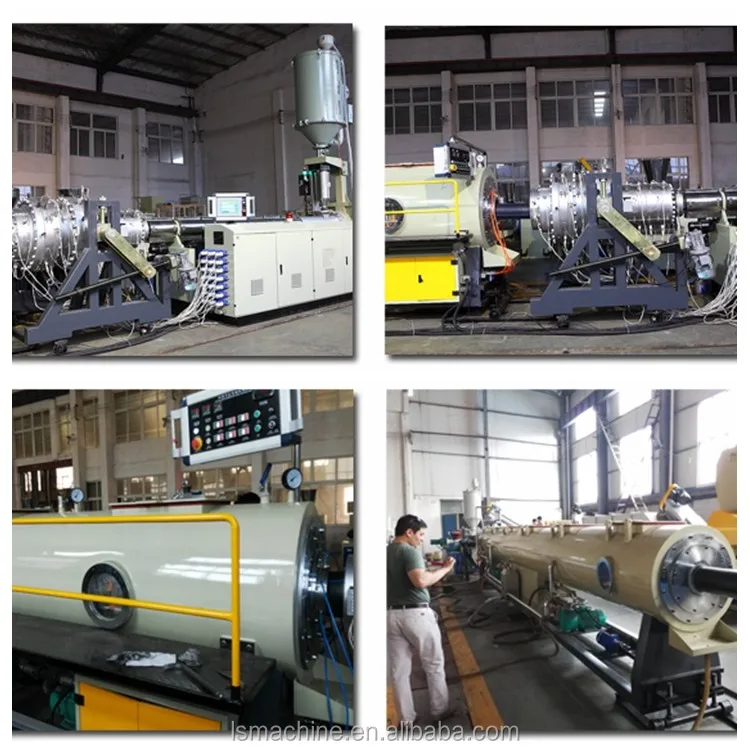

Detailed Images

160-450mm HDPE Pipe Making Machine Plastic PE Tube Extrusion Line

Certifications
Packing & Delivery
Our Service

1. Turn key project
2. Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
3. Arrangement for inspection, installation and testing work
After being informed machines ready for inspection, customer can send engineers to our factory to inspect and test the machines.
After the machines are delivered to customer's factory, we will send one or two technicians to the factory after preparation work is completed. Technicians will be responsible for guide on-site installation and testing machines.
Meanwhile technicians will give free training lessons to workers in customer's factory.
4. After 15-month quality guarantee period, we will provide after-sell service for all the life.


Why choose us:
1. Low cost : all the machines ,we make them by ourself to reduce the cost for our customers.
2. Genuine product with excellent quality : we choose our material very strict, all the material come to our factory must pass the quality test substandard goods are returned to the supplier.
3. Engerneers available to serve oversea.
4. Quick delivery: the company provide just in time delivery with its streamlined supply chain.
5. Cost saving: we take strong attention to every detail in the manufacturing process,the quality control in our factory is very strict, all defective semi-manufactures must be treated again or reject. all the machine must be checked out ,then deivered to our customer. all about that pushing up the price, what we want to do is give our customer a good quality product with stable working and long lived.

FAQ

Question and answer:

1.Q: Are you an industry manufacture factory or a foreign trade company?
A: We are an industrial manufacture factory of plastic extrusion machinery and auxiliary equipment, which locates in Zhangjiagang city, China.
2.Q: How long is the quality guarantee period of your machines?
A: 15-month after the machine arrives in customer's factory.
At the same time, we provide after-sell service for all the life.
3.Q: Payment term:
A: Loading Port: Shanghai by sea or by train.
T/T, L/C, West Union, or Cash, etc.
4.Q: Do you have any other services for your products?
A: We have lots of experience in manufacturing plastic machinery, so we can manufacture various machines according to customers' requirement.
5. Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.

Our Company

The company is located in Zhangjiagang city, Jiangsu province, China. It's a professional manufacturer specializing in research&development and producing plastic extrusion machinery and auxiliary machines. The main products include: PE PP PVC PPR plastic pipe extrusion lines, double wall corrugated pipe production line, single wall corrugated pipe production line, plastic profile production lines, plastic sheet extrusion lines, WPC board and profile extrusion line, PET bottle flakes washing recycling lines, PP/PE film washing recycling lines, PVC/PP/ PE pelletizing lines and auxiliary machinery (mixer, crusher, shredder, belling machine, etc.)

We have enjoyed great prestige from our customers both at home and abroad with good products quality and considerate service.We exported our products to many countries and regions all over the world, such as the Mid-East, Africa, Southeast Asia, South America, Europe,etc.

We sincerely hope to cooperate with customers from all over the world.

If you are interested in 160-450mm HDPE pipe making machine, please contact with me, thanks!

Our factory is near Shanghai, about 130km. Welcome you to visit anytime!
