PVC Wood Plastic Composite Hollow Door Board Manufacturing Machine

FOB Reference Price:Get Latest Price
$50,000.00 - $98,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YF series
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Screw diameter (mm):
80 mm
Screw L/D Ratio:
156
Output (kg/h):
200 - 400
Condition:
New
Application:
Sheet, Profile, Plates
Plastic Processed:
PVC
Screw Design:
Double-screw
Place of Origin:
Jiangsu, China
Brand Name:
LIANSHUN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
20mx2.5mx2.2m
Weight:
8-20T
Certification:
ISO CE SGS UL
Power (kW):
37
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty:
1 Year
Key Selling Points:
Competitive Price
Name:
PVC WPC door board manufacturing machine
Raw material:
PVC Powder
Product:
PVC door
Motor:
SIEMENS Brand
Inverter:
ABB Brand
Temperature controller:
Japan Omron
Machine control:
PLC
Experience:
with over 10 years experience
Material:
Stainless Steel 304
Automatic Grade:
Fully Automatic
Supply Ability
Supply Ability:
8 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed by plastic film and wood pallets, key parts put into wood case.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 40 To be negotiated
Product Description

PVC Wood Plastic Composite Hollow Door Board Manufacturing Machine

Features of PVC WPC door board manufacturing machine:

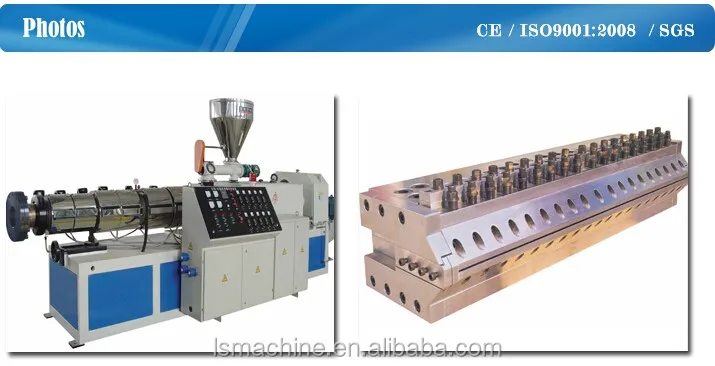

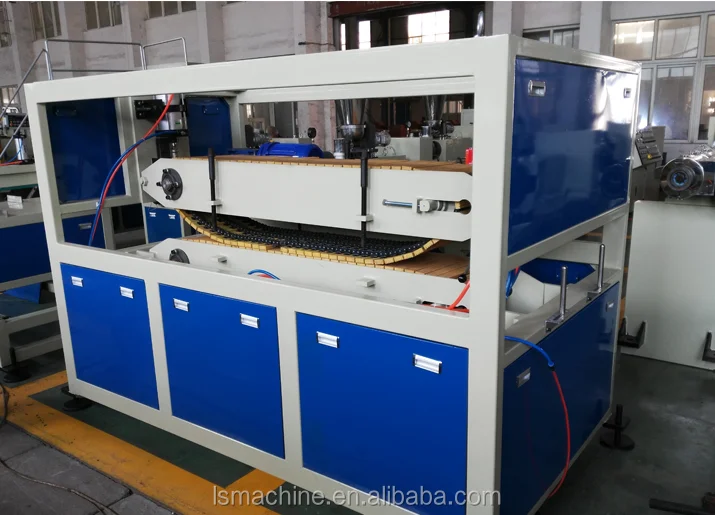

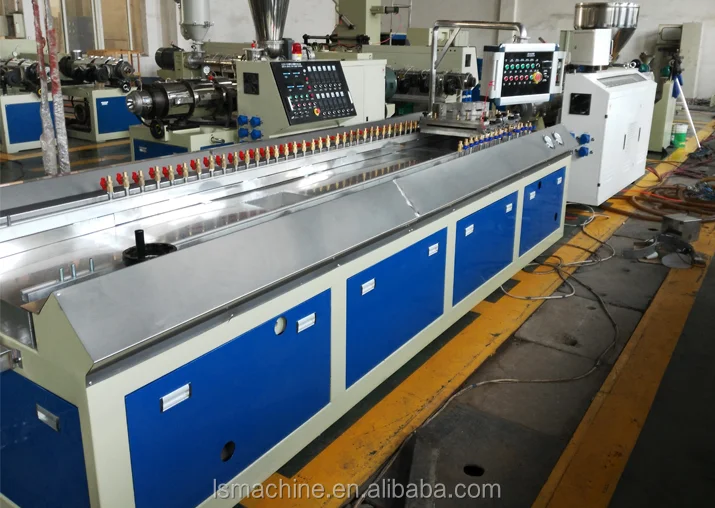

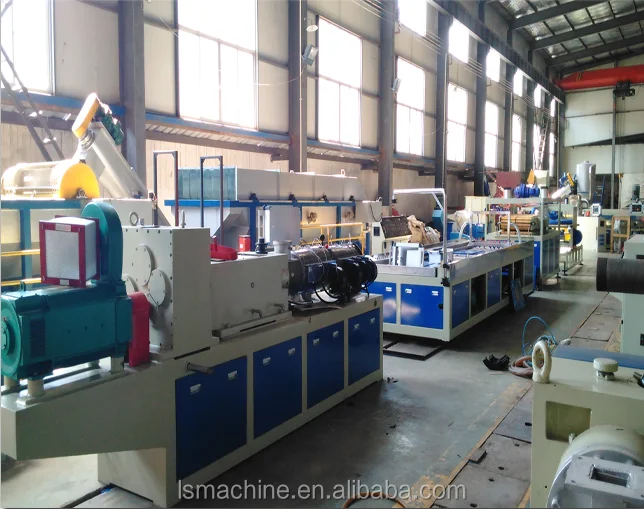

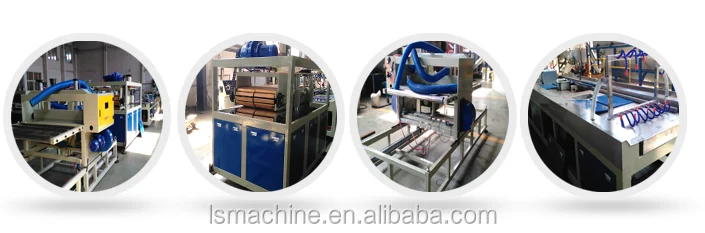

The PVC wide door board manufacturing machine of LIANSHUN adopts the latest manufacturing technology. It uses some parts of international famous brand.The SJSZ80/156,92/188 conical twin-screw plastic extruder are specially designed. Because it use ABB, SIEMENS frequency converter, RKC, and OMRON temperature control meter, it has the advantages of convenient and reliable operation etc. The PVC wood door extrusion production line is made up of conical twin-screw plastic extruder, broad mould, calibrator, cooling platform, crawler tractor, transverse cutting machine, and unload frame.

It can be used for inside and outside door, wall,window board etc. The raw material is PVC or PVC and wood mixing extrusion foaming process.The products of the PVC wide door extrusion production line have the advantages of wood and plastic. It has a unique appearance and overcomes the shortcomings of natural wood,but also has the good processing performance similar to that of wood.

The specific gravity can be controlled between 0.6-0.9kg/m3. It can be sawed, nailed, planed. The job can be completed by woodworking tools. Wood plastic materials and its products have the advantages of resistance to strong acid and alkali, water resistance, corrosion resistance, not easy to be eaten, anti aging, anti static, flame retardant.

Product features:

1.Working performance: energy saving 30-40%, stable operation, high production efficiency, low cost, high quality end products.

2.Ability to upgrade: easily upgrade, do not destroy the original structure, can change the extruder, and other parts, etc.

3.Maintenance conditions: provide maintenance accessories, provide training services.

4.Long working life

Main Technical Parameter---PVC Wood Plastic Hollow Door Board Manufacturing Machine:

Model
YF-600
YF-800
YF-1000
YF-1250
Max.width(mm)
600
800
1000
1250
Extruder model
SJSZ
80/156
SJSZ
80/156
SJSZ
92/188
SJSZ
92/188
Main motor power(kw)
55
55
132
132
Capacity (kg/h)
250-330
250-330
580-660
580-660
Cooling water (m³/h)
10
12
15
18
Compressed air (m³/min)
0.6
0.8
1.0
1.2

Composition List---PVC Wood Plastic Hollow Door Board Manufacturing Machine:

Item
Quantity
SJSZ-XX conical twin-screw extruder and automatic feeding system
One set
Die mold and stock mold
One set
Vacuum calibration table
One set
Haul-off unit and cutting unit
One set
Stacker
One set
Electric control cabinet
One set

Final Products---PVC Wood Plastic Hollow Door Boards:

Certifications
Packing & Delivery
Our Service

1. Turn key project
2. Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
3.Arrangement for inspection, installation and testing work
We will inspect and test the machine in our factory first before shipping the machine. Customers are welcome to come and check the working machine, until the machine produces the exact products as customers requirements, and learn operation in our factory.
After the machine is delivered to customer's factory, we will send one or two technicians to customer's factory for on-site installation and commissioning of the whole machine line. Meanwhile, technicians will give free training lessons to workers in customer's factory.
4.The guarantee period of the whole machine is 15 months.
5.Technical support from our factory is free of charge for all the life; quick response to any questions from customers.

FAQ

1.Q: Are you an industry manufacture factory or a foreign trade company?
A: We are an industrial manufacture factory of plastic extrusion machinery and auxiliary equipment, which locates in Zhangjiagang city, China.
2.Q: Payment term:
A: Loading Port: Shanghai by sea or by train.
T/T, L/C, West Union, or Cash, etc.
3.Q: Do you have any other services for your products?
A: We have rich experience in manufacturing plastic machinery, so we can manufacture various machines according to customers' requirement.
4. Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.

Our Company

Jiangsu Lianshun Machinery CO.,Ltd. is located in Zhangjiagang city, Jiangsu province, China. It's a professional manufacturer specializing in research&development and producing plastic extrusion machinery. The main products include: plastic pipe extrusion lines, plastic profile production lines, plastic sheet extrusion lines, WPC board and profile extrusion line, PET bottle flakes washing recycling lines, PP/PE film washing recycling lines, PVC/PP/ PE pelletizing

lines and auxiliary machinery (mixer unit, crusher and shredder, belling machine, etc.)

We have enjoyed great prestige from our customers both at home and abroad with good products quality and considerate service.We exported our products to many countries and regions all over the world, such as the Mid-East, Africa, Southeast Asia, South America, Europe,etc.

We sincerely hope to cooperate with customers from all over the world.

If you are interested in PVC wood plastic door board manufacturing machine, please feel free to contact us, thanks!

Welcome you to China and Visit our factory, Running machine can be showed anytime!
