3 layers PPR glass fiber reinforced tube extrusion equipment with good price

FOB Reference Price:Get Latest Price
$23,000.00 - $46,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LS-08
Max Pipe Diameter:
160mm
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
15months
Type:
Pipe Production Line
Production Capacity:
10-15M/Min
Power(W):
depend on model
Certification:
CE ISO
After-sales Service Provided:
Field installation, commissioning and training
Applicable Industries:
Manufacturing Plant
Condition:
New
Pipe Material:
PPR, PPR & Fiberglass
Application:
water-supply and drain pipe
Place of Origin:
Jiangsu, China
Brand Name:
Lianshun
Voltage:
380V/440V/220V
Dimension(L*W*H):
depend on model
Weight:
12T
Key Selling Points:
High Productivity
Name:
PPR fiberglass pipes extrusion device
Raw material:
PPR granules and fiberglass
Pipe diameter:
16-160mm
Motor brand:
SIEMENS products
Inverter brand:
ABB products
Temperature controller:
OMRON products
Usage:
cold and hot water supply system
Material:
Stainess Steel304
Color:
Customizable
Supply Ability
Supply Ability:
18 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed by plastic film and wood pallets, key parts put into wood case.
Port
Shanghai port
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 40 To be negotiated
Product Description

Working machine can be showed anytime, welcome you to visit our factroy!


3 Layers PPR Glass Fiber Reinforced Tube Extrusion Equipment

Description of PPR fiberglass tube extrusion equipment:

PPR fiberglass tube extrusion equipment is mainly used to produce multi-layers PPR fiberglass tube, such as 2 layers PPR fiberglass tube, 3 layers PPR fiberglass tube, 4 layers PPR fiberglass tube,etc. Which widely used for cold and hot water supply, transportation of corrosive liquids.

PPR fiberglass tube extrusion equipment consists of: 2 or 3 sets of high efficiency single screw extruder, SJ25/25 single screw co-extruder for mark line, pipe co-extrusion die head, vacuum calibration tank, spray cooling water tank,  ink jet printer, haul-off machine, free-dust cutter, stacker.

Process flow of PPR fiberglass tube extrusion equipment:

Raw material +master batches→mixing→vacuum feeding→material dryness→single screw extruder→single screw extruder→single screw extruder→color string extruder→spiral coextrusion mould→calibrator→spray vacuum calibration tank→spray cooling water tank→spray-code printer→belt haul-off→no-dust cutter→pipe rack→finished product inspecting &packing

Features of PPR fiberglass tube extrusion equipment:

1. Equipped with polyolefin purposed single-screw extruder; it has the characters of quick extruding, high efficiency and so on.

2. The specially designed co-extrusion die head is reasonable in flow channel, smooth in both internal and external walls, and small in internal stress.

3. Pipe diameter is among 16-160mm and production speed reaches to 25m/min(depend on pipe diameter and raw material).

4.One unit serves several purposes. It can produce common PP-R, Nanometer anti-bacteria pipe, PE-RT and PE-X

5. If added one co-extrusion engine and die on original base, it can produce PP-R fiberglass reinforced composite pipe.

Main Technical Parameters----PPR fiberglass tube extrusion equipment:

Item
Pipe diameter: 20-63mm
Pipe diameter: 75-160mm
Qty.
1
SJ65/33 high efficient single screw extruder
SJ90/30 high efficient single screw extruder
1 set
2
SJ65/30 single screw extruder
SJ65/30 single screw extruder
1 set
3
SJ25/25 co-extruder for mark line
SJ25/25 co-extruder for mark line
1 set
4
Co-extrusion die head and molds
Co-extrusion die head and mold (chromed)
1 set
5
Vacuum calibration cooling tank
SZD-6000 vacuum calibration cooling tank
1 set
6
Spraying cooling water tank
SDP-6000 spraying water cooling tank
1 set
7
Haul-off machine
SQY160 haulling off machine
1 set
8
Non-scraped knife or saw cutting machine
 (can be PLC controlled)
SQG160 non-scraped knife or saw cuuting machine (canbe PLC controlled)
1 set
9
Pipe stacker
pipe stacker
1 set
Optional Devices
1
Printer (Meter-counting Printer or Ink Jet Printer)
1 set
2
Plastic Mixer
1 set
3
Water Chiller
1 set
4
Air Compressor
1 set
Detailed Images

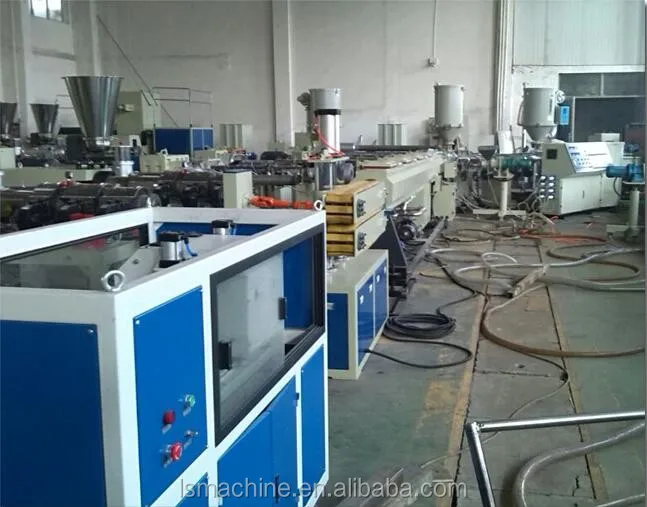

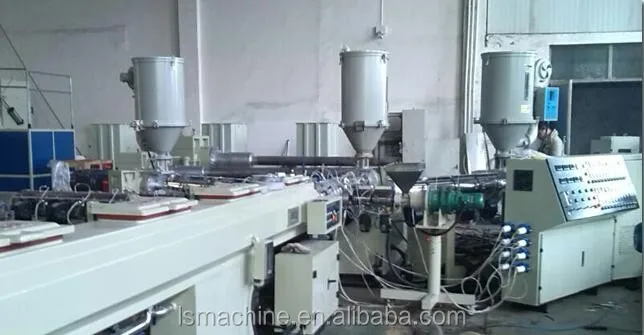

3 Layers PPR Fiberglass Tube Extrusion Equipment

Certifications
Packing & Delivery
Our Company

Jiangsu Lianshun Machinery CO.,Ltd. is located in Zhangjiagang city, Jiangsu province, China. It's a professional

manufacturer specializing in research&development and producing plastic extrusion machinery. The main products include: plastic pipe extrusion lines, plastic profile production lines, plastic sheet extrusion lines, WPC board and profile extrusion line, PET bottle flakes washing recycling lines, PP/PE film washing recycling lines, PVC/PP/ PE pelletizing
lines and auxiliary machinery (mixer unit, crusher and shredder, belling machine, etc.)


We have enjoyed great prestige from our customers both at home and abroad with good products quality and considerate service.We exported our products to many countries and regions all over the world, such as the Mid-East, Africa, Southeast Asia, South America, Europe,etc.

We sincerely hope to cooperate with customers from all over the world.

Our Service

1. Turn key project
2. Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
3.Arrangement for inspection, installation and testing work
We will inspect and test the machine in our factory first before shipping the machine. Customers are welcome to come and check the working machine, until the machine produces the exact products as customers requirements, and learn operation in our factory.
After the machine is delivered to customer's factory, we will send one or two technicians to customer's factory for on-site installation and commissioning of the whole machine line. Meanwhile, technicians will give free training lessons to workers in customer's factory.
4.The guarantee period of the whole machine is 15 months.
5.Technical support from our factory is free of charge for all the life; quick response to any questions from customers.

FAQ

1.Q: Are you an industry manufacture factory or a foreign trade company?
A: We are an industrial manufacture factory of plastic extrusion machinery and auxiliary equipment, which locates in Zhangjiagang city, China.
2.Q: Payment term:
A: Loading Port: Shanghai by sea or by train.
T/T, L/C, West Union, or Cash, etc.
3.Q: Do you have any other services for your products?
A: We have rich experience in manufacturing plastic machinery, so we can manufacture various machines according to customers' requirement.
4. Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.

If you want more information of 3 layers PPR fiberglass tube extrusion equipment, please contact us!
