Packed by plastic film and wood pallets, key parts put into wood case.
Jiangsu Plastic Machinery UPVC Door Window Making Machine
Features of UPVC door window making machine:
1. This UPVC door window making machine include: conical twin-screw extruder, vacuum calibration table, haul-off machine, cutter and stacker.
2. The extruder of UPVC door window making machine adopts special wpc scrw and barrel for extrusion. With different mould, UPVC machine can produce pure PVC UPVC products with different shapes, such as door and window frame, ceiling, etc.
3. Meanwhile, this UPVC door window making machine also can produce kinds of WPC plastic profiles, such as decking, skirting stair handrails, wall panel, etc.
4. This UPVC door and window making machine has features of low consumption, low noise and stable running.
Main Technical Parameter---UPVC door window making machine:
Main motor power(kw)
SJSZ-XX conical twin-screw extruder and automatic feeding system
Die mold and stock mold
Vacuum calibration table
Haul-off unit and cutting unit
Electric control cabinet

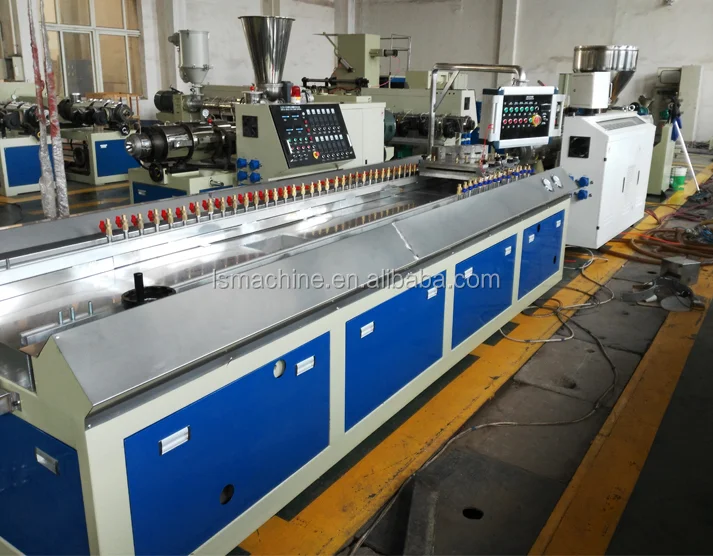

1. Conical Twin -screw extruder with Automatic feeding system---SJZ-XX conical twin-scrw extruder :(The model according to the sizes of final products to choose) The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.

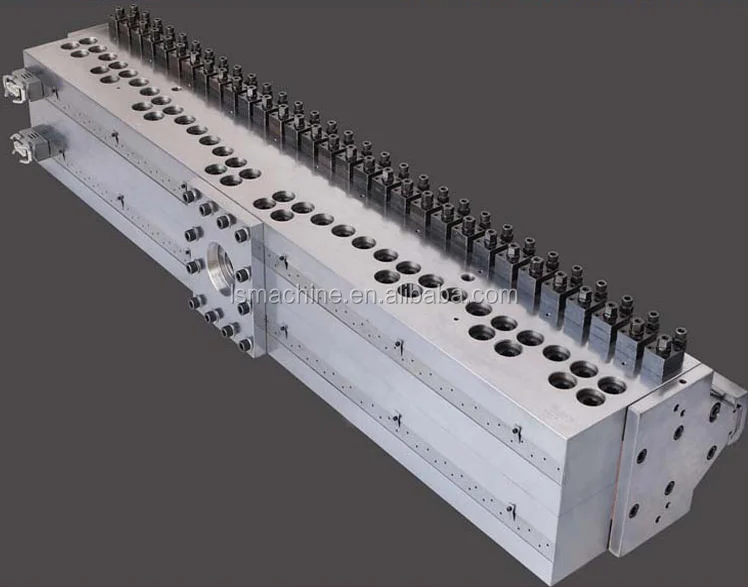

2.Die Mould and Stock Mould (Matches or according to customer's drawings or samples) Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.
3.Vacuum calibration table Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.

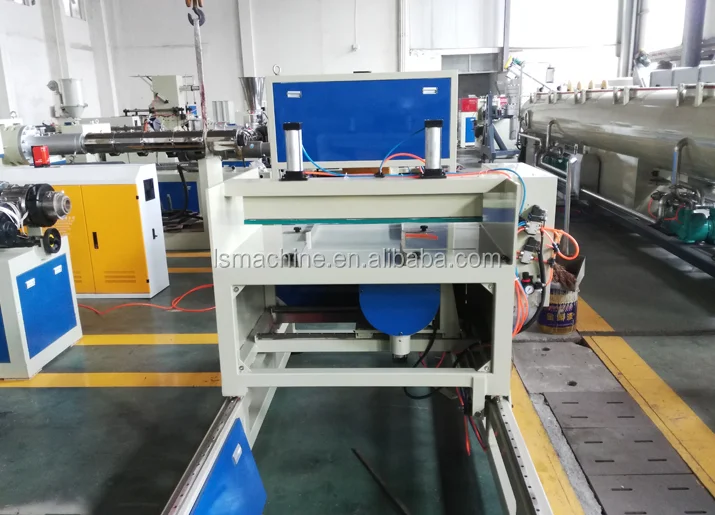

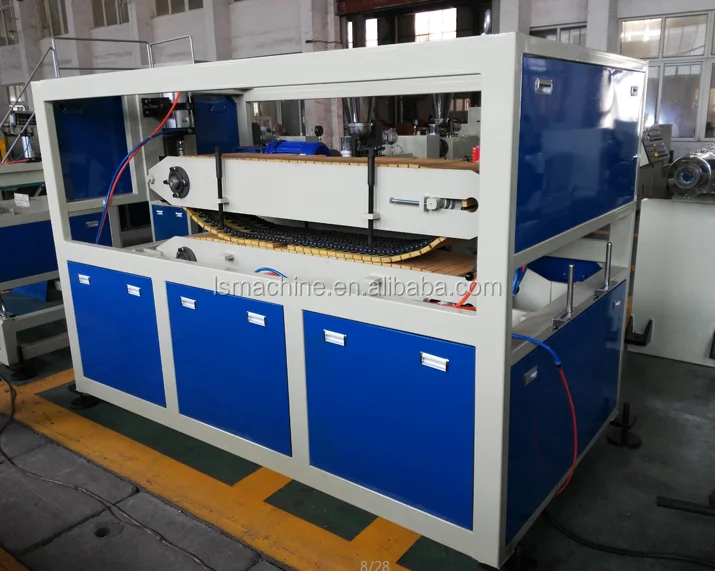

4.Haul-off unit and cutting unit

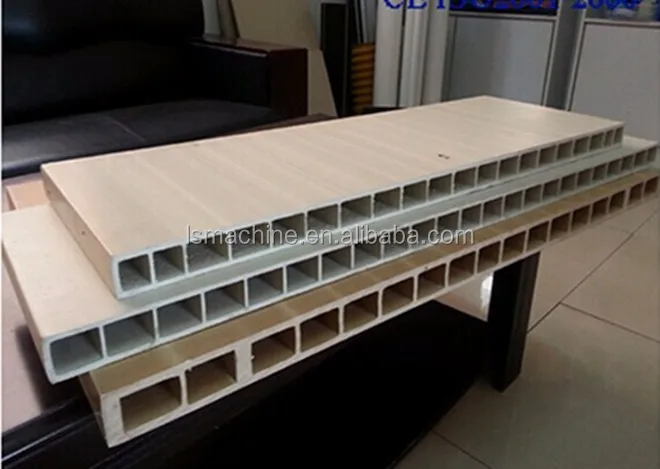

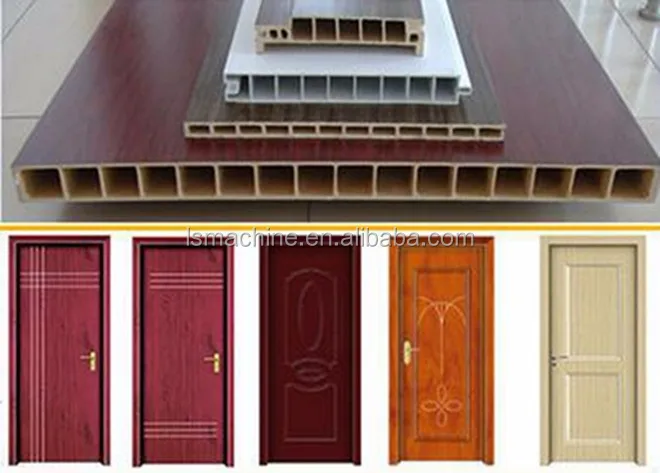

5. Finished products
Jiangsu Plastic Machinery PVC UPVC Door Window Making Machine
Packing & Delivery
1. Turn key project 2. Technical documents We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed. 3.Arrangement for inspection, installation and testing work We will inspect and test the machine in our factory first before shipping the machine. Customers are welcome to come and check the working machine, until the machine produces the exact products as customers requirements, and learn operation in our factory. After the machine is delivered to customer’s factory, we will send one or two technicians to customer’s factory for on-site installation and commissioning of the whole machine line. Meanwhile, technicians will give free training lessons to workers in customer’s factory. 4.The guarantee period of the whole machine is 15 months. 5.Technical support from our factory is free of charge for all the life; quick response to any questions from customers.
1.Q: Are you an industry manufacture factory or a foreign trade company? A: We are an industrial manufacture factory of plastic extrusion machinery and auxiliary equipment, which locates in Zhangjiagang city, China. 2.Q: Payment term: A: Loading Port: Shanghai by sea or by train. T/T, L/C, West Union, or Cash, etc. 3.Q: Do you have any other services for your products? A: We have rich experience in manufacturing plastic machinery, so we can manufacture various machines according to customers’ requirement. 4. Q:How do you make the quotation for clients? A:The price depends on quality and performance but the clients should be satisfied first.
If you are interested in PVC door window making machine, please feel free to contact us, thanks!
Welcome you to China and Visit our factory, Running machine can be showed anytime!
