PVC Electrical Wire and Cable Pipe Extrusion Production Line , Plastic PVC Duct Making Machine

FOB Reference Price:Get Latest Price
$20,000.00 - $38,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SJSZ65/132 SJSZ80/156 SJSZ51/105
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Screw diameter (mm):
65 mm
Output (kg/h):
150 - 300 kg/h
Condition:
New
Application:
Pipe
Plastic Processed:
PVC UPVC CPVC
Screw Design:
Double-screw
Place of Origin:
Jiangsu, China
Brand Name:
LIANSHUN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
based on model
Weight:
8-20T
Certification:
CE ISO9001
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty:
2 Years
Key Selling Points:
Competitive Price
Name:
PVC wire and cable duct production machine
Raw material:
PVC Powder
Motor:
Germany SIEMENS Motor
Inverter:
ABB Brand
Temperature controller:
Japan Omron
Usage:

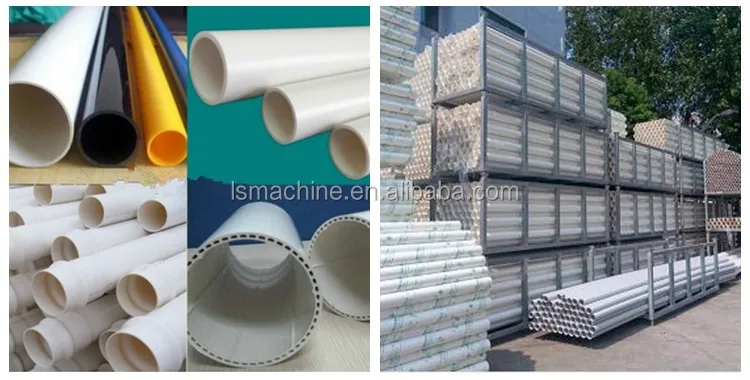

water supply & drainage, electric protection pipe, etc.
Material of machine:
Stainless Steel 304
Automatic Grade:
Automatic
Power(W):
65-420KW
Supply Ability
Supply Ability:
13 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed with plastic film and wooden pallet, key parts packed in wood case.
Port
Shanghai
Product Description
PVC Electrical Wire and Cable Duct Pipe Extrusion Production Line

Description of PVC cable duct production line:

PVC UPVC CPVC pipe production machine is mainly used in manufacturing the pipe for agricultural and constructional plumbing, cable laying etc. This line is composed of conical twin-screw extruder, mould, vacuum calibration tank, haul-off unit, cutter and stacker, etc. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality SIEMENS brand. The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw, based on the diameter of pipe. Cutting machine type has lift-up cutter, chip-free cutter and planetary cutter. It is additionally equipped with length counter and intensifying device. The equipment is of reliable performance and high production efficiency. At the same time, we also supply all kinds of PVC dies.

Process flow of PVC cable duct producion line:

Main technical data:

Type
Pipe diameter spec. (mm)
Extruder
Max. output (kg/h)
Total installed power (kw)
PVC-32  (four strand)
16-32
SJZ65/132
250-300
65
PVC-63 (two strand)
16-63
SJZ65/132
250-300
65
PVC-160
63-160
SJZ65/132
250-300
100
PVC-250
75-250
SJZ65/132
250-300
110
PVC-315
200-315
SJZ80/156
300-400
180
PVC-450
200-450
SJZ80/173
450-500
245
PVC-630
315-630
SJZ92/188
650-750
350
PVC-800
400-800
SJZ110/220
1000-1500
420

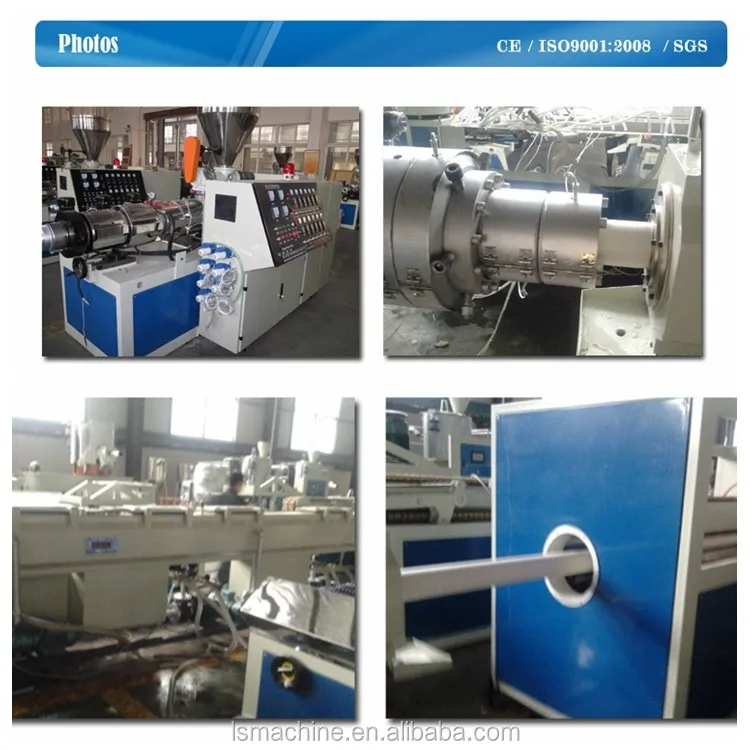

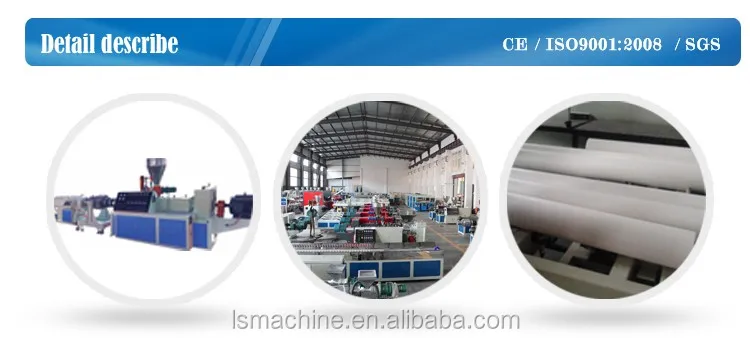

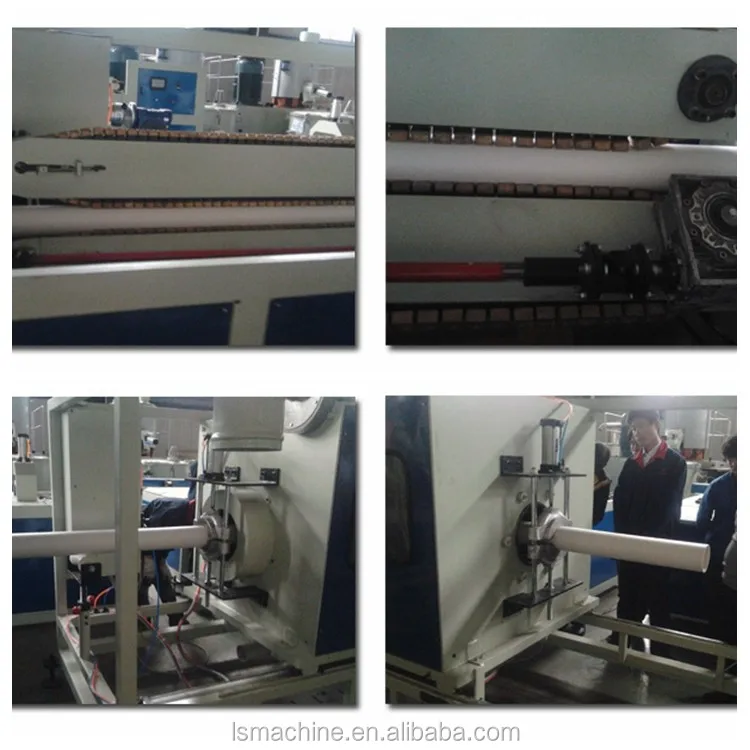

Detailed Images

PVC Electrical Wire and Cable Duct Pipe Extrusion Production Line / PVC Duct Making Machine

Certifications
Packing & Delivery
Our Service

1. Turn key project
2. Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
3.Arrangement for inspection, installation and testing work
We will inspect and test the machine in our factory first before shipping the machine. Customers are welcome to come and check the working machine, until the machine produces the exact products as customers requirements, and learn operation in our factory.
After the machine is delivered to customer’s factory, we will send one or two technicians to customer’s factory for on-site installation and commissioning of the whole machine line. Meanwhile, technicians will give free training lessons to workers in customer’s factory.
4.The guarantee period of the whole machine is 15 months.
5.Technical support from our factory is free of charge for all the life; quick response to any questions from customers.


Why choose us:
1. Low cost : all the machines ,we make them by ourself to reduce the cost for our customers.
2. Genuine product with excellent quality : we choose our material very strict, all the material come to our factory must pass the quality test substandard goods are returned to the supplier.
3. Engerneers available to serve oversea.
4. Quick delivery: the company provide just in time delivery with its streamlined supply chain.
5. Cost saving: we take strong attention to every detail in the manufacturing process,the quality control in our factory is very strict, all defective semi-manufactures must be treated again or reject. all the machine must be checked out ,then deivered to our customer. all about that pushing up the price, what we want to do is give our customer a good quality product with stable working and long lived.

FAQ

1.Q: Are you an industry manufacture factory or a foreign trade company?
A: We are an industrial manufacture factory of plastic extrusion machinery and auxiliary equipment, which locates in Zhangjiagang city, China.
2.Q: Payment term:
A: Loading Port: Shanghai by sea or by train.
T/T, L/C, West Union, or Cash, etc.
3.Q: Do you have any other services for your products?
A: We have rich experience in manufacturing plastic machinery, so we can manufacture various machines according to customers’ requirement.
4. Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.

Our Company

Jiangsu Lianshun Machinery CO.,Ltd. is located in Zhangjiagang city, Jiangsu province, China. It’s a professional manufacturer specializing in research&development and producing plastic extrusion machinery. The main products include: plastic pipe extrusion lines, plastic profile production lines, plastic sheet extrusion lines, WPC board and profile extrusion line, PET bottle flakes washing recycling lines, PP/PE film washing recycling lines, PVC/PP/ PE pelletizing lines and auxiliary machinery (mixer unit, crusher and shredder, belling machine, etc.)

We have enjoyed great prestige from our customers both at home and abroad with good products quality and considerate service.We exported our products to many countries and regions all over the world, such as the Mid-East, Africa, Southeast Asia, South America, Europe,etc.

We sincerely hope to cooperate with customers from all over the world.

If you are interested in PVC electrical wire and cable duct production line, please feel free to contact us, thanks!
Our company is near Shanghai, about 130km. Welcome you to visit anytime!
